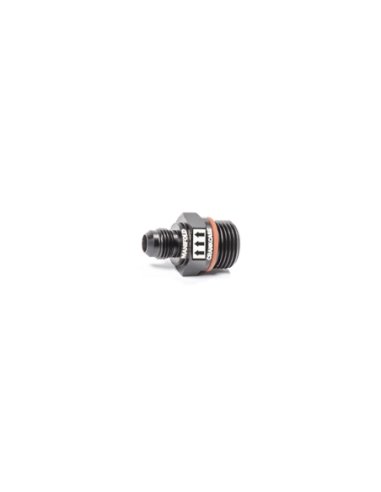

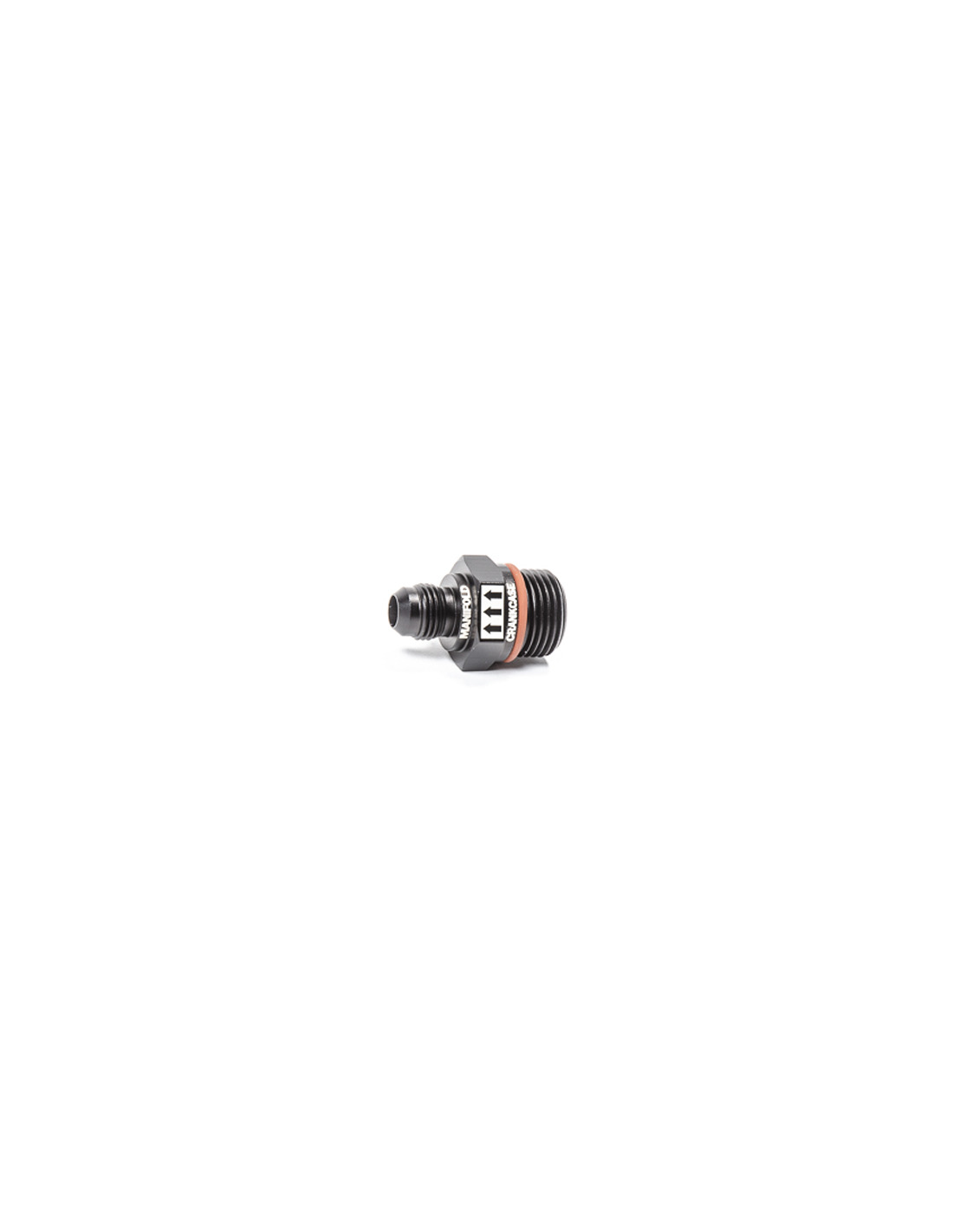

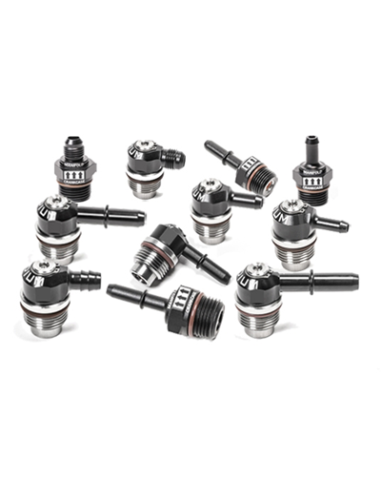

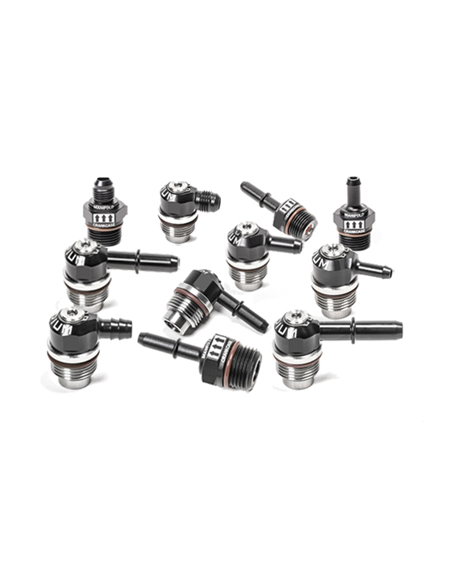

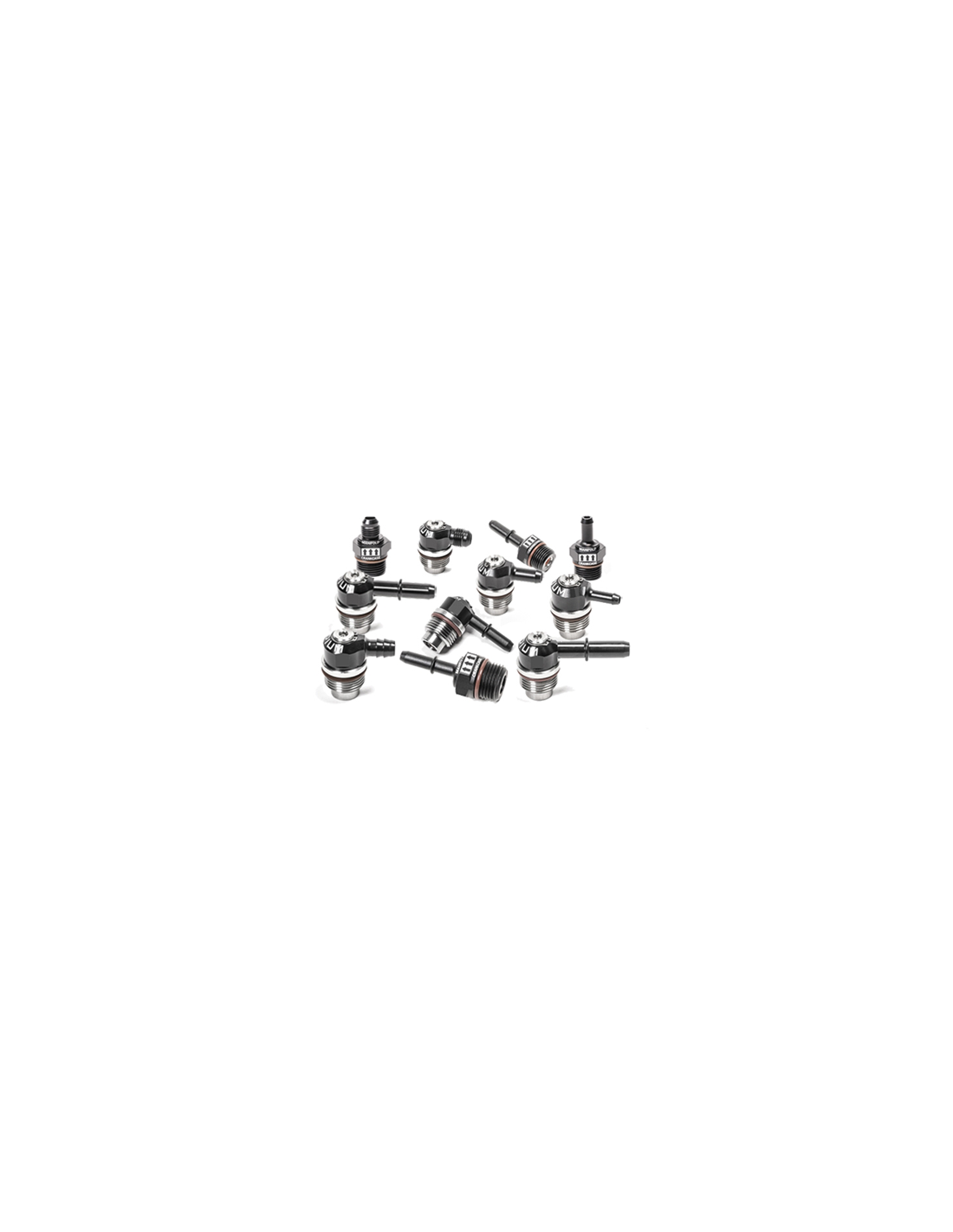

Radium Engineering-ventil för PCV-system (positiv vevhusventilation). Förväxla inte detta med en enkel enkelriktad backventil. PCV-ventilens interna kolv mäter dynamiskt lämplig mängd av vevhusventilationsluftflöde baserat på aktuell motorbelastning. Korrekta PCV-ventiler förhindrar "vakuumläckage" som en backventil skulle skapa vid låga belastningar. I händelse av baktändning förhindrar PCV-ventilen också att brännbara ångor antänds i vevhuset.
PCV-ventilerna kan användas i utloppet på alla Radium Engineering Catch Can (visas ovan) eller någon relaterad del som använder -10AN ORB-gängor.
20-0530 SPECIFICATIONS
Aluminum: 6061 Type-II Anodized
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 3/8" Barb (9.5mm)
20-0561 SPECIFICATIONS
Aluminum: 6061 Type-II Anodized
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 6AN Male
20-0683 SPECIFICATIONS
Aluminum: 6061 Type-II Anodized
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 5/16" SAE Quick Connect Male
20-0688 SPECIFICATIONS
Aluminum: 6061 Type-II Anodized
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 10mm SAE Quick Connect Male
20-1000-1006-PCV SPECIFICATIONS
Quick Connect Material: Anodized Aluminum
10AN ORB Material: Stainless Steel
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 6AN Male
Feature: Low Profile 90 Degree Swivel
NOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
20-1000-1010B-PCV SPECIFICATIONS
Quick Connect Material: Anodized Aluminum
10AN ORB Material: Stainless Steel
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 10mm Barb
Feature: Low Profile 90 Degree Swivel
NOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
20-1000-1010S-PCV SPECIFICATIONS
Quick Connect Material: Anodized Aluminum
10AN ORB Material: Stainless Steel
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 10mm SAE Quick Connect Male
Feature: Low Profile 90 Degree Swivel
NOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
20-1000-10313-PCV SPECIFICATIONS
Quick Connect Material: Anodized Aluminum
10AN ORB Material: Stainless Steel
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 5/16" SAE Quick Connect Male
Feature: Low Profile 90 Degree Swivel
NOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
20-1000-10375-PCV SPECIFICATIONS
Quick Connect Material: Anodized Aluminum
10AN ORB Material: Stainless Steel
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 3/8" SAE Quick Connect Male
Feature: Low Profile 90 Degree Swivel
NOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
20-1000-1065-PCV SPECIFICATIONS
Quick Connect Material: Anodized Aluminum
10AN ORB Material: Stainless Steel
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 6.5mm Barb
Feature: Low Profile 90 Degree Swivel
NOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
20-1000-1085-PCV SPECIFICATIONS
Quick Connect Material: Anodized Aluminum
10AN ORB Material: Stainless Steel
Sealing O-rings: FKM and Silicone
Inlet: 10AN ORB (7/8"-14 threads)
Outlet: 8.5mm Barb
Feature: Low Profile 90 Degree Swivel
NOTE: As shown, this is slightly taller than a standard 10AN ORB fitting. An extra 0.26" (6.7mm) clearance is required for the O-ring to properly seat.
