Click here to download installation instructions (PDF)

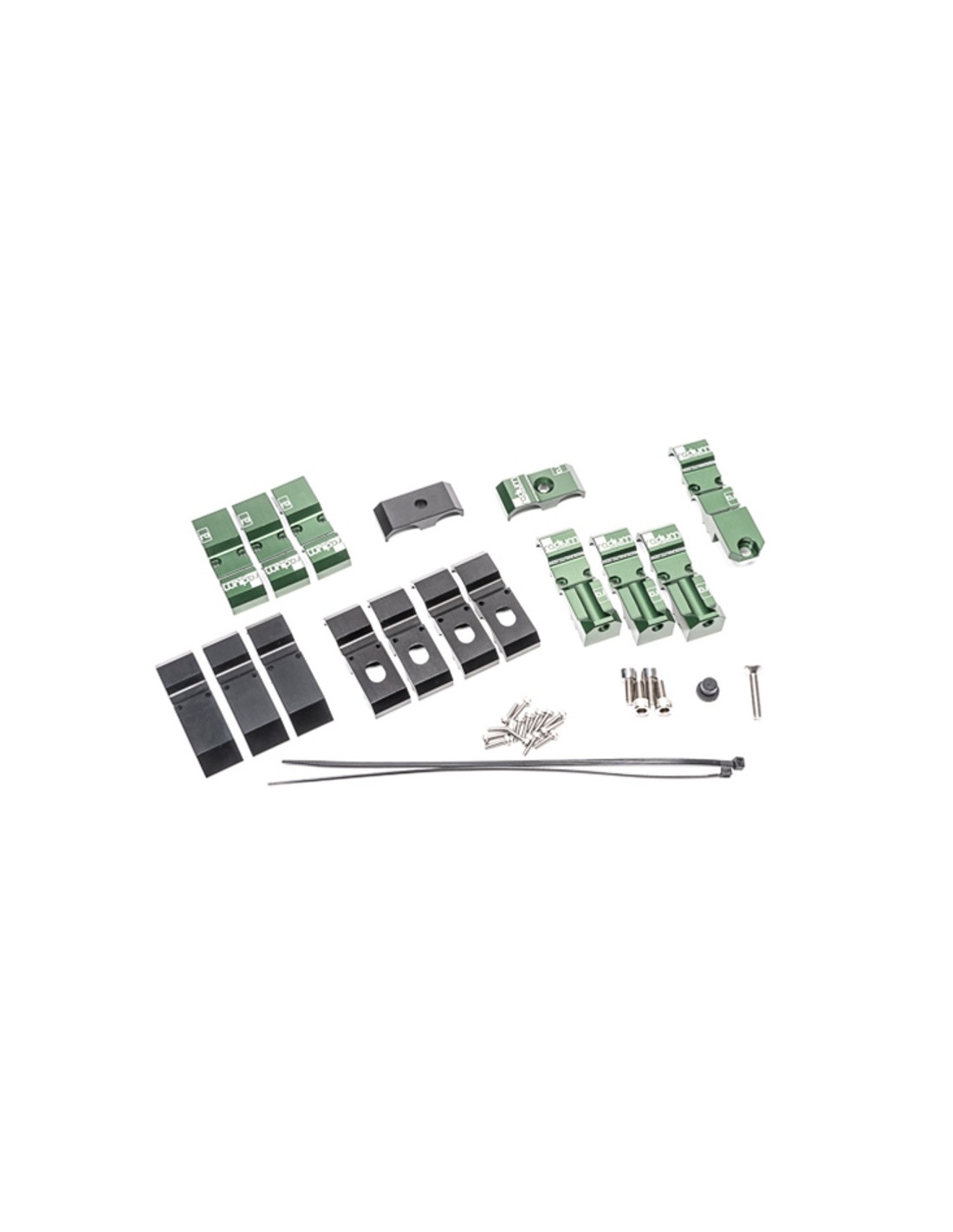

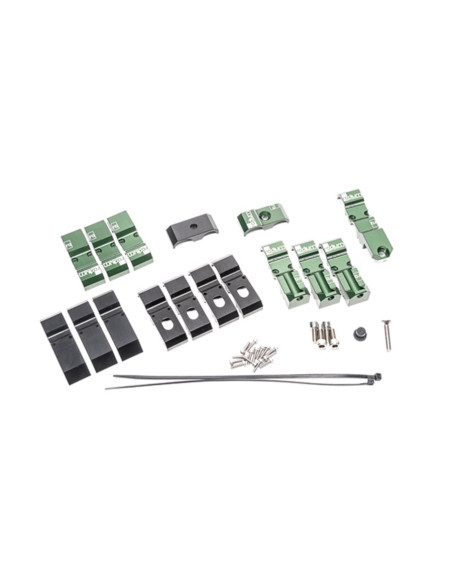

The following are billet aluminum clamps that replace the plastic retainers that secure the OEM hard lines underneath Nissan vehicles.
20-0626 FUEL BRAKE LINE RETAINER KIT, NISSAN

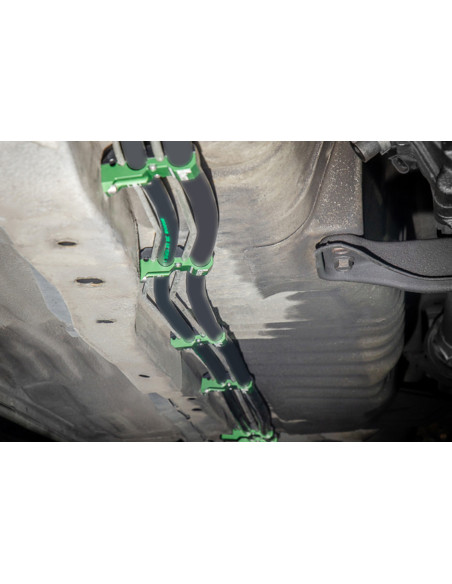

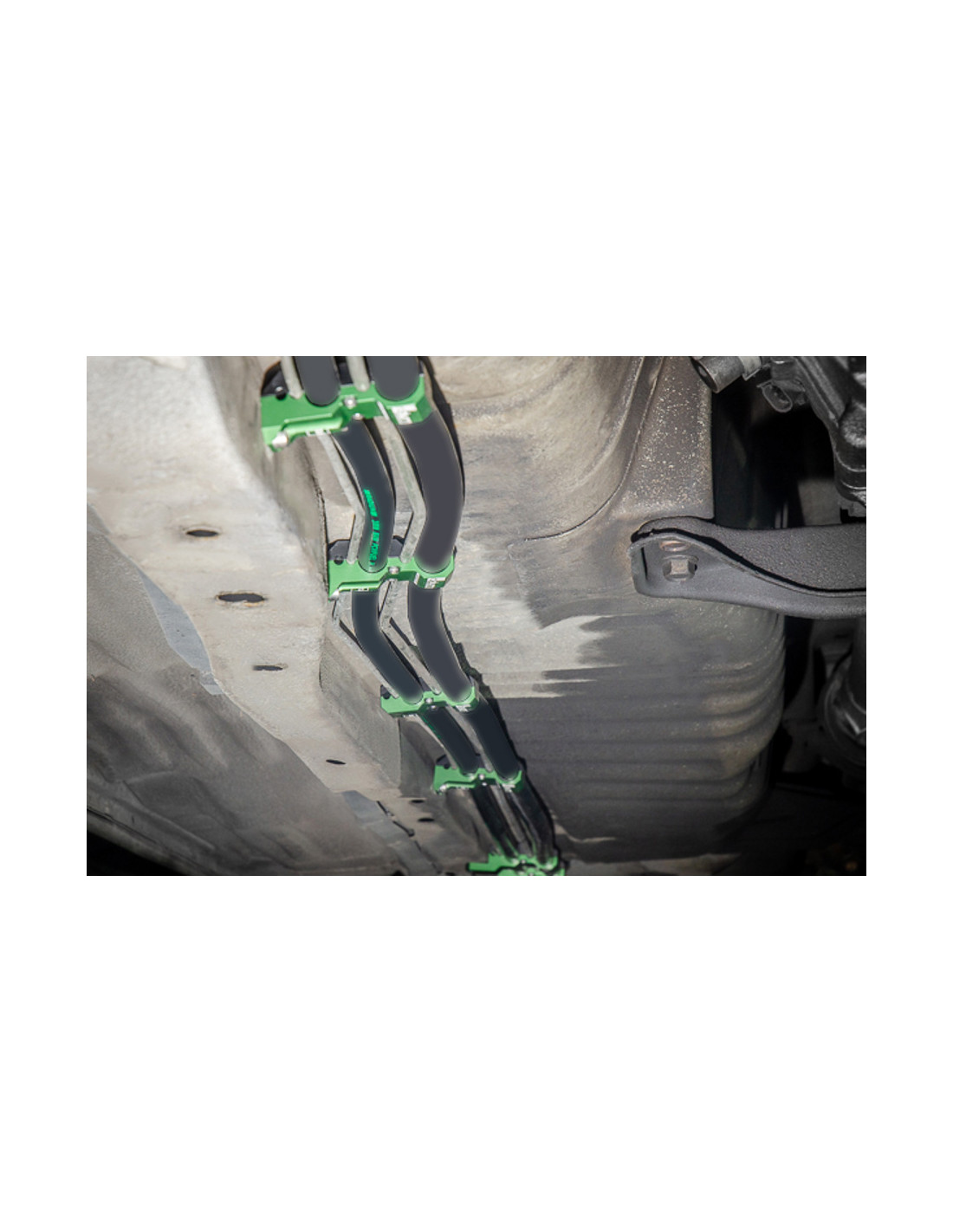

The Radium Engineering fuel brake line retainer kit supports large aftermarket fuel lines under the following vehicles.
COMPATIBILITY
Nissan S13 Silvia (All models/trims/RHD/LHD)
Nissan S13 180SX (All models/trims/RHD/LHD)
Nissan S13 200SX (All models/trims/RHD/LHD)
Nissan S13 240SX (All models/trims/RHD/LHD)
Nissan S14 Silvia (All models/trims/RHD/LHD)
Nissan S14 200SX (All models/trims/RHD/LHD)
Nissan S14 240SX (All models/trims/RHD/LHD)
Nissan S15 Silvia (All models/trims/RHD/LHD)
Nissan S15 200SX (All models/trims/RHD/LHD)
Nissan R32 Skyline (All models/trims/RHD/LHD)
Nissan R33 Skyline (All models/trims/RHD/LHD)
Nissan R34 Skyline (All models/trims/RHD/LHD)
NOTES
1. Anodized 6061 aluminum with stainless steel hardware to resist oxidation.
2. Certain vehicles will only use 7 of the 8 provided retainers.
3. This fuel brake line retainer kit does not include aftermarket fuel lines.
4. Compatible with 6AN (return) and 8AN (feed) Radium EFI Fuel hose.
5. Reference the dimensions illustrated below to determine fuel line compatibility.
6. There is no way of determining what size different types of fuel lines are compatible (rubber, braided, PTFE, aluminum, steel, etc).
20-0627 HICAS LINE RETAINER KIT, NISSAN
These retainers are only for Nissan vehicles that use HICAS (High Capacity Actively Controlled Steering) on the rear wheels. The HICAS lines share the same plastic retainers as the fuel and brake lines. If these retainers are ever removed, the HICAS lines will be left hanging. As shown below, this kit is perfect for those using the 20-0626 FUEL BRAKE LINE RETAINER KIT, NISSAN (described above and depicted below).
When installing the HICAS retainer kit, equally space all 5 clamps as shown above. Because the 2 HICAS lines are rigidly secured to the chassis in the front and the rear, these clamps do not secure to the unibody. They are already rigid enough to not sag.
INCLUDED
(5x) Black Anodized 6061 Aluminum Clamps.
(5x) Stainless Steel M6x1mm Allen Head Bolts.
